1543016 | Phoenix Contact
Plug, M12, 5 pole, screw connection, SPEEDCON locking, straight, 1543016
Unit Price (€ / pc.)
29.6905 € *
Available: 0 pcs.
Leadtime: On Request **

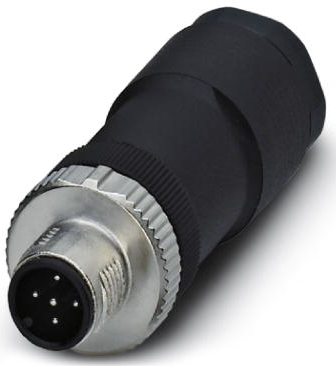

Sensor-actuator connector, 1543016, Phoenix Contact
Connector, Universal, 5-position, plug straight M12 SPEEDCON, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg11-DUO, external cable diameter 2.1 mm - 3 mm / 4 mm - 5.2 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Fast locking system
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Ausführung | Stecker | |
| Gewindegröße | M12 | |
| Kodierung | A | |
| Kontaktanschluss | Schraubanschluss | |
| Kontaktoberfläche | CuSnZn | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | SPEEDCON-Verriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
