1553640 | Phoenix Contact

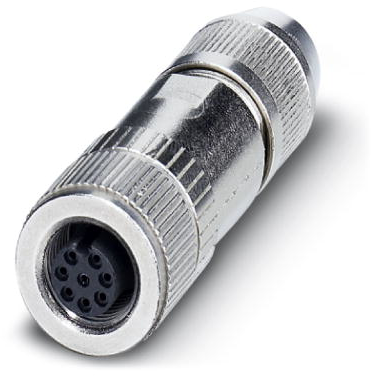

Socket, M12, 8 pole, IDC connection, screw locking, straight, 1553640

Order No.: 61P9226
EAN: 4046356158817
MPN:
1553640
SACC-M12FS-8Q SH
Series: SACC
1553640 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
60.3211 € *
Available: 0 pcs.
Available in 10 days: 1 pcs.
Leadtime: 1 Week **
Total Price:
60.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
60.3211 €

Sensor-actuator connector, 1553640, Phoenix Contact

Data connector, Ethernet CAT5 (1 Gbps), 8-position, shielded, Socket straight M12, Insulation displacement connection, knurl material: Nickel-plated brass, external cable diameter 4 mm - 8 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Ausführung Buchse
Gewindegröße M12
Kodierung A
Kontaktanschluss Schneidklemmanschluss
Kontaktoberfläche vernickelt/vergoldet
Montage Kabelmontage
Orientierung gerade
Polzahl 8-polig
Schutzart (IP) IP67
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
