1607499 | Phoenix Contact

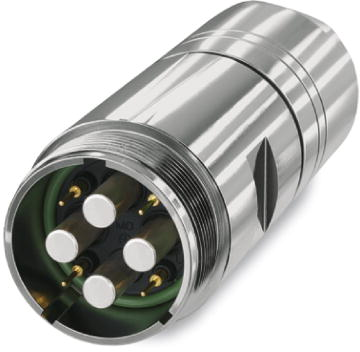

Plug, M58, 6 pole, crimp connection, screw locking, straight, 1607499
Unit Price (€ / pc.)
446.3333 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Coupler connector, 1607499, Phoenix Contact
Coupler connector, straight, Screw locking, M58, number of positions: 2+3+PE, type of contact: Pin, cable diameter range: 25 mm - 36 mm, number of positions: 6, connection method: Crimp connection.
Features
- Consistent EMC protection for reliable connection solutions in the industrial environment
- Reliable transmission of high electrical power
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For power applications
Technical specifications
| Version | plug | |
| Thread size | M58 | |
| Coding | N | |
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
