1613625 | Phoenix Contact
Socket, M17, 9 pole, crimp connection, SPEEDCON locking, straight, 1613625
Unit Price (€ / pc.)
32.1895 € *
Available: 0 pcs.
Leadtime: On Request **

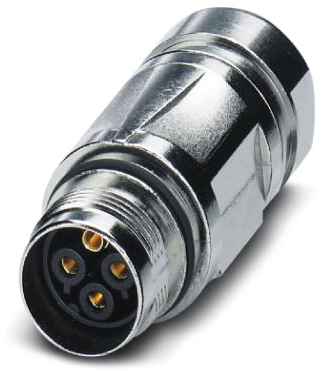

Coupler connector, 1613625, Phoenix Contact
Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 5+3+PE, type of contact: Socket, flange dimensions: 25.75 mm x 25.75 mm, cable diameter range: 5 mm - 8 mm, number of positions: 9, connection method: Crimp connection.
Features
- Shielded
- Consistent EMC protection for reliable connection solutions in the industrial environment
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For power applications
Technical specifications
| Ausführung | Buchse | |
| Gewindegröße | M17 | |
| Kodierung | N | |
| Kontaktanschluss | Crimpanschluss | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 9-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | SPEEDCON-Verriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
