1618641 | Phoenix Contact

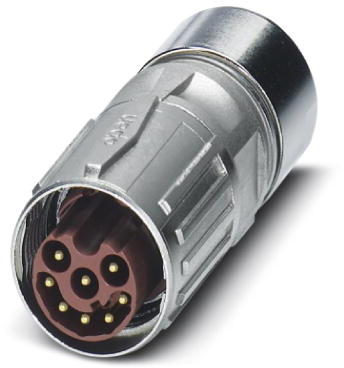

Plug, M17, 8 pole, crimp connection, SPEEDCON locking, straight, 1618641
Unit Price (€ / pc.)
29.7857 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Sensor-actuator connector, 1618641, Phoenix Contact
Cable connector, straight, SPEEDCON locking, M17, number of positions: 8, type of contact: Pin, cable diameter range: 3.5 mm - 5.5 mm, number of positions: 8, connection method: Crimp connection.
Features
- Shielded
- Consistent EMC protection for reliable connection solutions in the industrial environment
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For signal applications
Technical specifications
| Ausführung | Stecker | |
| Gewindegröße | M17 | |
| Kodierung | N | |
| Kontaktanschluss | Crimpanschluss | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | SPEEDCON-Verriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
