1619607 | Phoenix Contact

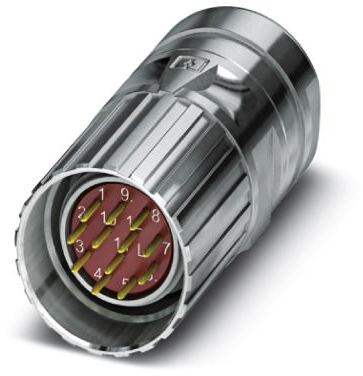

Plug, M23, 17 pole, crimp connection, screw locking, straight, 1619607
Unit Price (€ / pc.)
33.0939 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Sensor-actuator connector, 1619607, Phoenix Contact
Cable connector, CA, straight, Screw locking, M23, No. of pole: 17, Direction of rotation: Standard, type of contact: Pin, Crimp connection, cable diameter range: 10 mm - 14.5 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Crimping connection: vibration- and temperature-resistant assembly
- Circular connector
Technical specifications
| Ausführung | Stecker | |
| Gewindegröße | M23 | |
| Kodierung | N | |
| Kontaktanschluss | Crimpanschluss | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 17-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
