1620046 | Phoenix Contact

Socket, M23, 6 pole, solder connection, SPEEDCON locking, straight, 1620046

Order No.: 61P9861
EAN: 4046356819510
MPN:
1620046
CA-06S1N129008
Series: CA
Phoenix Contact
1620046 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
31.0709 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
31.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.0709 €

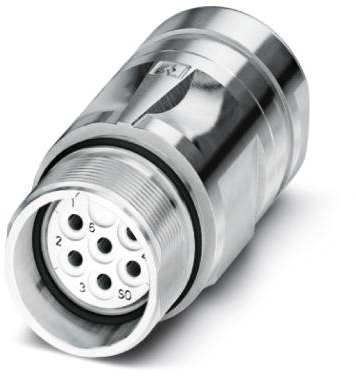

Coupler connector, 1620046, Phoenix Contact

Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 6, Direction of rotation: Standard, type of contact: Socket, Solder connection, cable diameter range: 10 mm - 14.5 mm.

Features

  • Safe use in the field, thanks to high degree of protection
  • Consistent EMC protection for reliable transmission of signals
  • Contact material: CuZn
  • N-coded

Applications

  • For signal applications
Technical specifications
Version socket
Thread size M23
Coding N
Contact connection solder connection
contact surface nickel-plated/gold-plated
Assembly cable assembly
Orientation straight
Pin number 6 pole
Degree of protection (IP) IP67
Type of locking SPEEDCON locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
