1620141 | Phoenix Contact
Socket, M23, 7 pole, solder connection, SPEEDCON locking, straight, 1620141
Unit Price (€ / pc.)
24.0261 € *
Available: 0 pcs.
Leadtime: On Request **

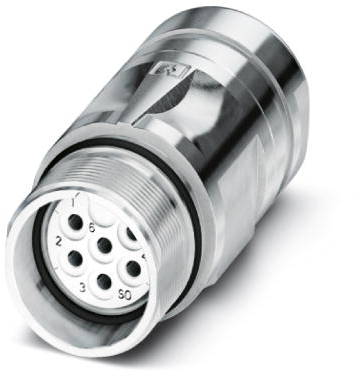

Coupler connector, 1620141, Phoenix Contact
Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 7, Direction of rotation: Standard, type of contact: Socket, Solder connection, cable diameter range: 4 mm - 6 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Circular connector
Technical specifications
| Ausführung | Buchse | |
| Gewindegröße | M23 | |
| Kodierung | N | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 7-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | SPEEDCON-Verriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
