1621537 | Phoenix Contact
Plug, M23, 13 pole, crimp connection, SPEEDCON locking, straight, 1621537
Unit Price (€ / pc.)
67.4492 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

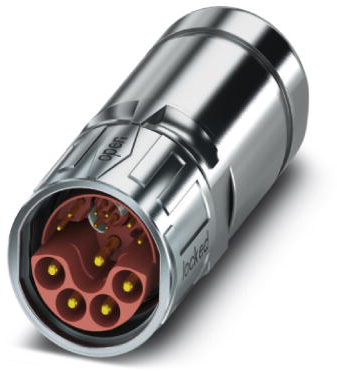

Sensor-actuator connector, 1621537, Phoenix Contact
Cable connector, SH, straight long, SPEEDCON locking, M23, No. of pole: 8+4+PE, type of contact: Pin, Crimp connection, cable diameter range: 12 mm - 15 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Consistent EMC protection for reliable connection solutions in the industrial environment
- Fast locking system
Applications
- For transmission of signals
Technical specifications
| Ausführung | Stecker | |
| Gewindegröße | M23 | |
| Kodierung | N | |
| Kontaktanschluss | Crimpanschluss | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 13-polig | |
| Schutzart (IP) | IP67/IP68/IP69K | |
| Verriegelung | SPEEDCON-Verriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
