1622013 | Phoenix Contact

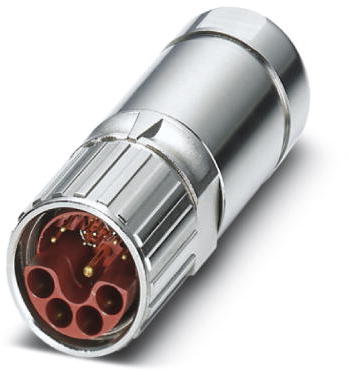

Plug, M23, 13 pole, crimp connection, screw locking, straight, 1622013
Unit Price (€ / pc.)
60.4163 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Sensor-actuator connector, 1622013, Phoenix Contact
Cable connector, SH, straight long, Screw locking, M23, No. of pole: 8+4+PE, type of contact: Pin, Crimp connection, cable diameter range: 7.5 mm - 9 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Consistent EMC protection for reliable connection solutions in the industrial environment
- Fast locking system
Applications
- For transmission of signals
Technical specifications
| Version | plug | |
| Thread size | M23 | |
| Coding | N | |
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 13 pole | |
| Degree of protection (IP) | IP67/IP68 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
