1624530 | Phoenix Contact

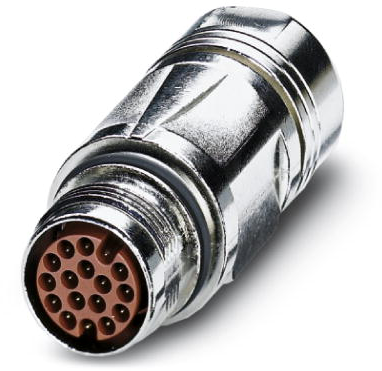

Plug, M17, 17 pole, crimp connection, SPEEDCON locking, straight, 1624530

Order No.: 62P4489
EAN: 4046356622455
MPN:
1624530
ST-17P1N8A9005S
Series: ST
1624530 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
30.7377 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
30.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
30.7377 €

Coupler connector, 1624530, Phoenix Contact

Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 17, type of contact: Pin, cable diameter range: 10 mm - 12.5 mm, number of positions: 17, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: II
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Version Stecker
Thread size M17
Coding N
Contact connection Crimpanschluss
Assembly Kabelmontage
Orientation gerade
Pin number 17-polig
Degree of protection (IP) IP67
Type of locking SPEEDCON-Verriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
