1641714 | Phoenix Contact

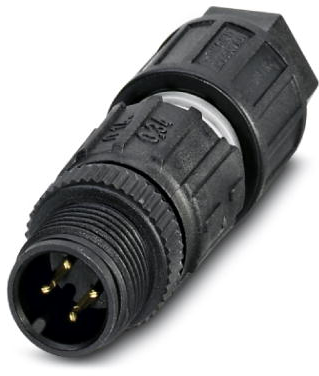

Plug, M12, 4 pole, IDC connection, screw locking, straight, 1641714
Unit Price (€ / pc.)
19.0757 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1641714, Phoenix Contact
Connector, Universal, 4-position, plug straight M12, Insulation displacement connection, knurl material: Plastic, external cable diameter 3.5 mm - 6 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Version | Stecker | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | Schneidklemmanschluss | |
| contact surface | vernickelt/vergoldet | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
