1692705 | Phoenix Contact
PHOENIX CO 1692705
Unit Price (€ / pc.)
164.0653 € *
Available: 0 pcs.
Available in 10 days: 6 pcs.
Leadtime: 1 Week **

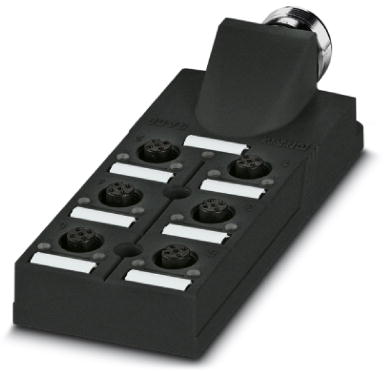

Sensor/actuator box, 1692705, Phoenix Contact
Sensor/actuator box, Application: standard, Connection method: M12 socket plastic, Number of slots: 6, Number of positions: 5, Coding: A-standard, Slot assignment: double, Status display: yes, PNP; Master cable connection: M23 plug connection 180°, Shielding: no
Features
- Safety in the field, thanks to molded housing and high degree of protection
- Convenient: increased machine availability thanks to quick and easy diagnostics
- Save space: distributor box with double occupancy for two sensors in one slot
Technical specifications
| Bus Eingang | M12 (5-polig, A-kodiert, Buchse) | |
| Leistungsanschluss | M12 | |
| Schutzart (IP) | IP65/IP67 | |
| Signalart | PNP |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
