1026165 | Phoenix Contact
Component terminal block, push-in connection, 0.14-4.0 mm², 4 pole, 20 A, 8 kV, gray, 1026165
Unit Price (€ / pc.)
4.2364 € *
Available: 0 pcs.
Available in 10 days: 38 pcs.
Leadtime: 1 Week **

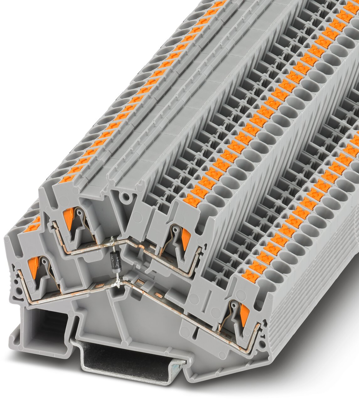

Component terminal block, 1026165, Phoenix Contact
Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated 1N4007 diode, circuit symbol visible when installed, rated voltage: 500 V, nominal current: 20 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- The compact design and front connection enable wiring in a confined space
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Bauelement-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 55 mm | |
| Länge | 78 mm | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| Nennstrom | 20 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
