1028360 | Phoenix Contact

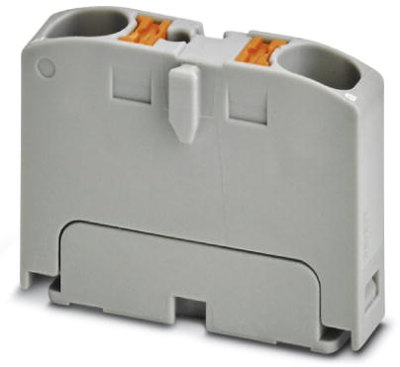

Distribution block, push-in connection, 0.2-6.0 mm², 2 pole, 32 A, 6 kV, gray, 1028360
Unit Price (€ / pc.)
1.7136 € *
Available: 0 pcs.
Available in 10 days: 1,403 pcs.
Leadtime: 2 Weeks **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5827 €
50 pcs.
1.4399 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution block, 1028360, Phoenix Contact
Distribution block, Basic terminal block, rated voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: gray.
Features
- Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
- Space savings of up to 50% on the DIN rail, thanks to transverse mounting
- Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
- Clear wiring, thanks to eleven different color variants
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | distribution block | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 6 kV | |
| Width | 21.7 mm | |
| Colour | gray | |
| Height | 21.7 mm | |
| Length | 28.6 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 32 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
