1028363 | Phoenix Contact

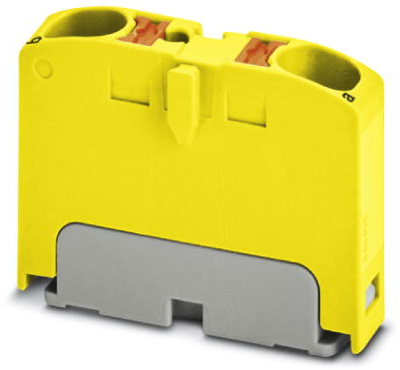

Distribution block, push-in connection, 0.2-6.0 mm², 2 pole, 32 A, 2 kV, yellow, 1028363

Order No.: 65P2394
EAN: 4055626526935
MPN:
1028363
PTFIX 2X4 YE
Series: PTFIX
Phoenix Contact
1028363 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.6660 €
50 pcs.
1.5232 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale

Distribution block, 1028363, Phoenix Contact

Distribution block, Basic terminal block, rated voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm²  - 6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: yellow.

Technical specifications
Connection push-in connection
Number of terminals 2
Version distribution block
AWG cross-section AWG 24 to 10
Rated Voltage 450 V
Rated surge voltage 2 kV
Width 21.7 mm
Colour yellow
Height 21.7 mm
Length 28.6 mm
Cable cross-section 0.2-6.0 mm²
Rated current 32 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
