1030130 | Phoenix Contact

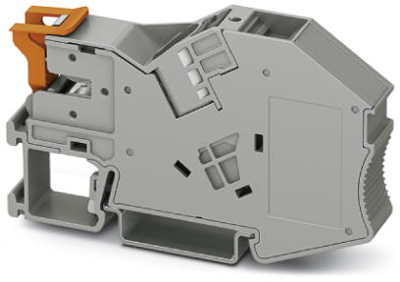

Installation terminal block, push-in connection, 0.5-25 mm², 70 A, 8 kV, gray, 1030130
Unit Price (€ / pc.)
5.9262 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.93 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9262 €
10 pcs.
5.4502 €
50 pcs.
4.9623 €
100 pcs.
4.4625 €
*incl. VAT plus shipping costs
**Subject to prior sale
Installation terminal block, 1030130, Phoenix Contact
Installation terminal block, with end bracket function, rated voltage: 1000 V, nominal current: 70 A, Push-in connection, 1 level, Rated cross section: 16 mm², cross section: 0.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Ausführung | Installationsetagenklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 4 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 12.2 mm | |
| Farbe | grau | |
| Höhe | 48.5 mm | |
| Länge | 81.9 mm | |
| Leiterquerschnitt | 0,5-25 mm² | |
| Nennstrom | 70 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
