1030753 | Phoenix Contact
Component terminal block, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, gray, 1030753
Unit Price (€ / pc.)
6.6283 € *
Available: 0 pcs.
Leadtime: 1 Week **

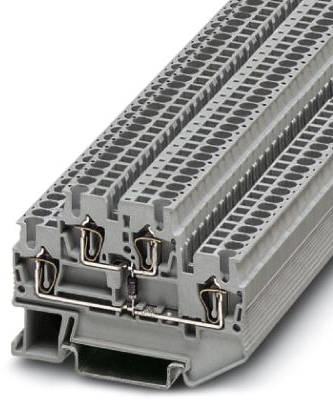

Component terminal block, 1030753, Phoenix Contact
Component terminal block, with 10 kOhm resistance for wire-break monitoring, rated voltage: 500 V, nominal current: 22 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Connection | spring balancer connection | |
| Version | component terminal block | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Height | 55 mm | |
| Length | 67.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 22 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
