1049773 | Phoenix Contact
Patch panel, push-in connection, 0.14-2.5 mm², 2 pole, 8 A, 4 kV, blue, 1049773
Unit Price (€ / pc.)
17.0527 € *
Available: 0 pcs.
Available in 10 days: 220 pcs.
Leadtime: 2 Weeks **

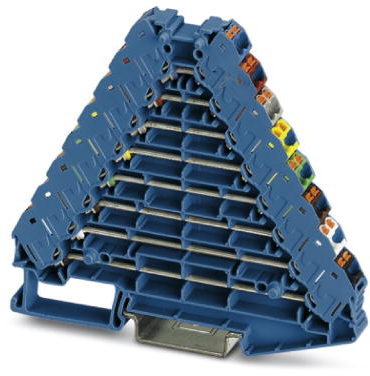

Marshalling panel, 1049773, Phoenix Contact
Marshalling panel, rated voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 2.5 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Features
- Tool-free wiring in a confined space thanks to compact size
- Individual color assignment of cable and terminal point to ensure error-free, safe operation
- High contact quality thanks to push-in technology as a replacement for Wire-Wrap, TERMI-POINT
- Blue version for using in intrinsically safe circuits in potentially explosive areas (type of protection Ex i)
- The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
Technical specifications
| Connection | push-in connection | |
| Version | patch panel | |
| AWG cross-section | AWG 14 to 26 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 8.3 mm | |
| Colour | blue | |
| Height | 87.5 mm | |
| Length | 100 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Rated current | 8 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
