1079167 | Phoenix Contact
Through terminal block, screw connection, 0.14-6.0 mm², 3 pole, 32 A, 6 kV, black, 1079167
Unit Price (€ / pc.)
2.9869 € *
Available: 0 pcs.
Available in 10 days: 1,046 pcs.
Leadtime: 2 Weeks **
Total Price:
2.99 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9869 €
10 pcs.
2.7489 €
50 pcs.
2.4990 €
100 pcs.
2.2491 €
*incl. VAT plus shipping costs
**Subject to prior sale

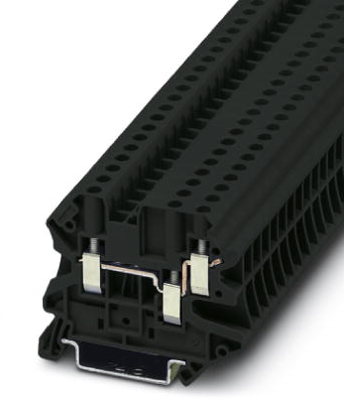

Feed-through terminal block, 1079167, Phoenix Contact
Feed-through terminal block, nominal voltage: 500 V, nominal current: 32 A, Type of connection: Screw connection, No. of connections: 3, cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, width: 6.2 mm, height: 46.9 mm, color: black, mounting type: NS 35/7.5, NS 35/15.
Features
- The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
- User-friendly implementation of all potential branching tasks
- Tested for railway applications
Technical specifications
| Version | Durchgangsklemme | |
| Number of terminals | 3 | |
| Pin number | 3-polig | |
| Cable cross-section | 0,14-6,0 mm² | |
| AWG cross-section | AWG 26 bis 10 | |
| Rated surge voltage | 6 kV | |
| Rated current | 32 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 57.8 mm | |
| Width | 6.2 mm | |
| Height | 46.9 mm | |
| Connection | Schraubanschluss | |
| Colour | schwarz |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
