1876615 | Phoenix Contact

Double level terminal, screw/plug-in connection, 0.2-4.0 mm², 1 pole, 250 A, 4 kV, yellow/green, 1876615

Order No.: 60P5370
EAN: 4017918134082
MPN:
1876615
UKK 3-MSTB-5,08-PE
Series: UKK

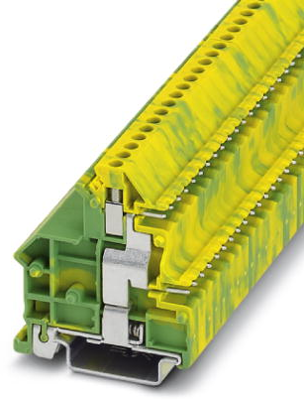

1876615 Phoenix Contact Series Terminals Image 1

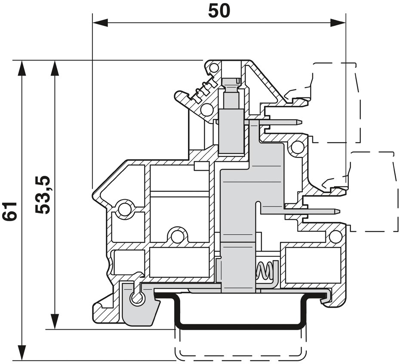

1876615 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
6.1761 € *
Available: 0 pcs.
Available in 10 days: 4 pcs.
Leadtime: 1 Week **
Total Price:
6.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.1761 €

Double level terminal block, 1876615, Phoenix Contact

Double-level terminal block, rated voltage: 1000 V, nominal current: 250 A, number of connections: 4, number of positions: 1, connection method: Screw/plug-in connection, 2nd level connection left, cross section: 0.2 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow.

Technical specifications
Anschluss Schraub-/Steckanschluss
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 1000 V
Bemessungsstoßspannung 4 kV
Breite 5.08 mm
Farbe gelb/grün
Höhe 53.5 mm
Länge 50.5 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 250 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
