1953017 | Phoenix Contact

Through terminal block, plug-in connection, 0.5-6.0 mm², 8 pole, 32 A, 8 kV, gray, 1953017

Order No.: 60P6027
EAN: 4017918052508
MPN:
1953017
UVKB 4-FS/FS(8-2,8-0,8)
Series: UVKB

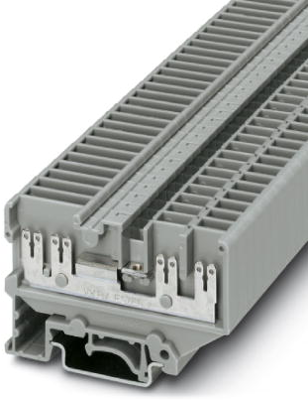

1953017 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
3.9508 € *
Available: 0 pcs.
Available in 10 days: 7 pcs.
Leadtime: 1 Week **
Total Price:
3.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.9508 €

Feed-through terminal block, 1953017, Phoenix Contact

Feed-through terminal block, rated voltage: 800 V, nominal current: 32 A, connection method: Spade connection, 1 level, Rated cross section: 4 mm², cross section: 0.5 mm²  - 6 mm², mounting type: NS 32, NS 35/7,5, NS 35/15, color: gray.

Features

  • The slotted plugs enable one fully insulated or two bare 2.8 mm slip-on sleeves to be slid on in place of one 6.3 mm slip-on sleeve
  • The housing panels only protrude slightly beyond the metal parts because it is assumed that fully-insulated slip-on sleeves are connected
  • The front slip-on plug-in connection is the ideal wiring design for applications where space is limited and cable ducts need to be moved close to the terminal strip
Technical specifications
Anschluss Steckanschluss
Anzahl der Klemmstellen 8
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 20 bis 10
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 6.2 mm
Farbe grau
Höhe 44 mm
Länge 68 mm
Leiterquerschnitt 0,5-6,0 mm²
Nennstrom 32 A
Polzahl 8-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
