1954016 | Phoenix Contact

Through terminal block, screw connection, 0.2-4.0 mm², 4 pole, 29 A, 6 kV, gray, 1954016

Order No.: 60P6026
EAN: 4017918052560
MPN:
1954016
UVKB 4-FS(6-2,8-0,8)
Series: UVKB
1954016 Phoenix Contact Series Terminals

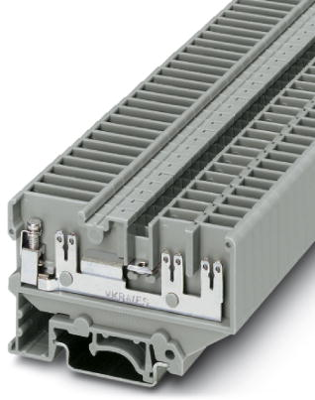

Image may differ
Unit Price (€ / pc.)
4.8552 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8552 €

Feed-through terminal block, 1954016, Phoenix Contact

Feed-through terminal block, rated voltage: 500 V, nominal current: 29 A, 1st level connection left, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², connection method: Spade connection, mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.

Features

  • The slotted plugs enable one fully insulated or two bare 2.8 mm slip-on sleeves to be slid on in place of one 6.3 mm slip-on sleeve
  • The housing panels only protrude slightly beyond the metal parts because it is assumed that fully-insulated slip-on sleeves are connected
  • The front slip-on plug-in connection is the ideal wiring design for applications where space is limited and cable ducts need to be moved close to the terminal strip
Technical specifications
Anschluss Schraubanschluss
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 44 mm
Länge 68 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 29 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
