2716033 | Phoenix Contact
Device terminal, screw connection, 0.2-4.0 mm², 3 pole, 32 A, 6 kV, gray, 2716033
Unit Price (€ / pc.)
5.5930 € *
Available: 0 pcs.
Available in 10 days: 2,885 pcs.
Leadtime: 2 Weeks **
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5930 €
10 pcs.
5.1527 €
50 pcs.
4.6767 €
100 pcs.
4.2245 €
*incl. VAT plus shipping costs
**Subject to prior sale

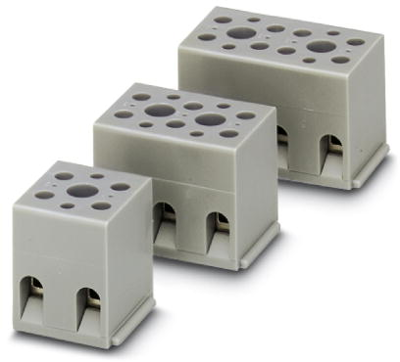

Device terminal block, 2716033, Phoenix Contact
Device terminal block, for direct mounting, 3-pos.
Features
- Touch-proof schock protection
Technical specifications
| Connection | Schraubanschluss | |
| Version | Geräteklemme | |
| AWG cross-section | AWG 24 bis 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |

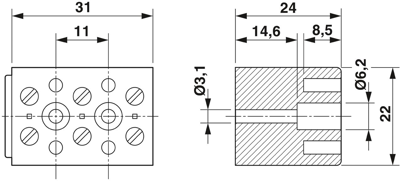

| Width | 31 mm | |
| Colour | grau | |
| Height | 24 mm | |
| Length | 22 mm | |
| Cable cross-section | 0,2-4,0 mm² | |
| Rated current | 32 A | |
| Pin number | 3-polig | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
