2718206 | Phoenix Contact

Motor connection terminal, screw connection, 0.2-4.0 mm², 24 A, 6 kV, gray, 2718206

Order No.: 60P6088
EAN: 4017918062279
MPN:
2718206
VIOK 1,5-3D/PE
Series: VIOK

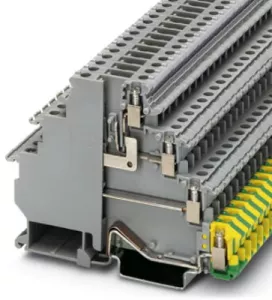

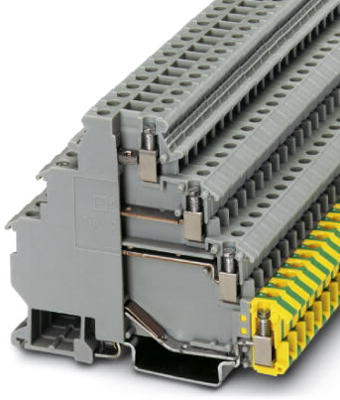

2718206 Phoenix Contact Series Terminals Image 1
2718206 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
11.1146 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 1 Week **
Total Price:
11.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.1146 €

Motor terminal block, 2718206, Phoenix Contact

Motor terminal block, four-level, cross section:  0.2 mm²  - 4 mm², AWG: 24 - 12, connection method: screw connection, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15.

Features

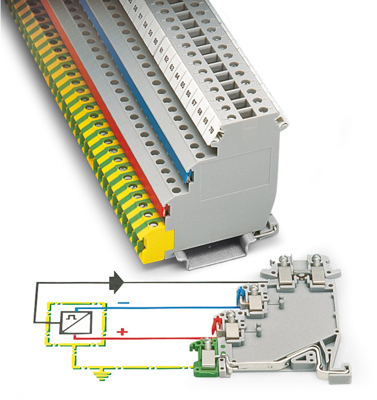

  • It is used for programmable or self-monitoring initiators which are additionally controlled via the second feed-through level
  • This terminal block has 2 feed-through levels and 2 busbar levels
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Motoranschlussklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 70 mm
Länge 82.5 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 24 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
