2770286 | Phoenix Contact

Double level terminal, screw connection, 0.2-4.0 mm², 1 pole, 10 A, 4 kV, blue, 2770286

Order No.: 60P5368
EAN: 4017918197667
MPN:
2770286
UKK 3-MSTB-5,08 BU
Series: UKK

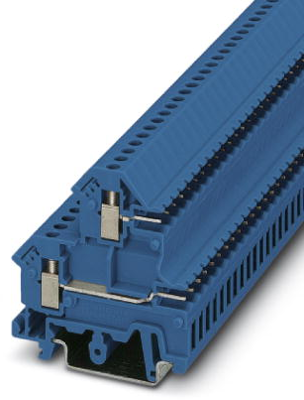

2770286 Phoenix Contact Series Terminals Image 1

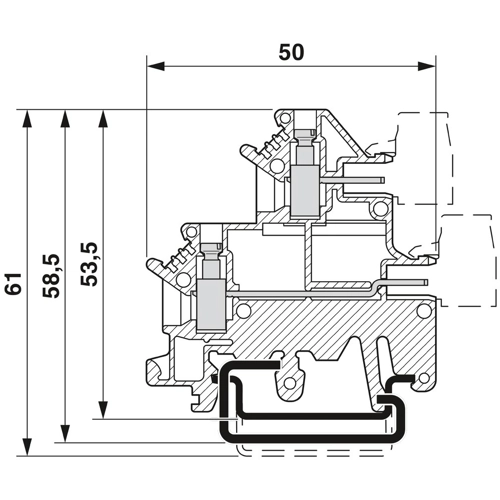

2770286 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.0341 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.0341 €

Double level terminal block, 2770286, Phoenix Contact

Double-level terminal block, rated voltage: 250 V, nominal current: 10 A, connection method: Screw/plug-in connection, 1st and 2nd level connection left, cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: blue.

Technical specifications
Anschluss Schraubanschluss
Ausführung Doppelstockklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 250 V
Bemessungsstoßspannung 4 kV
Breite 5.1 mm
Farbe blau
Höhe 53.5 mm
Länge 50 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 10 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
