2772077 | Phoenix Contact
Double level terminal, screw connection, 0.5-16 mm², 4 pole, 57 A, 6 kV, gray, 2772077
Unit Price (€ / pc.)
12.2689 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
12.27 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2689 €
10 pcs.
11.4121 €
50 pcs.
10.3887 €
100 pcs.
9.3415 €
*incl. VAT plus shipping costs
**Subject to prior sale

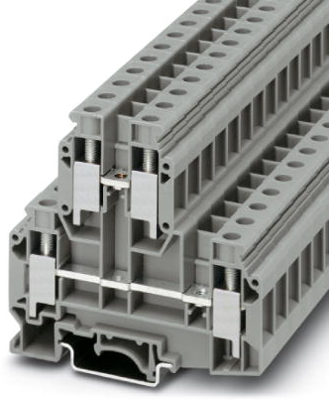

Double level terminal block, 2772077, Phoenix Contact
Double-level terminal block, rated voltage: 500 V, nominal current: 57 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Features
- Design width of just 10.2 mm
Technical specifications
| Version | Doppelstockklemme | |
| Number of terminals | 4 | |
| Pin number | 4-polig | |
| Cable cross-section | 0,5-16 mm² | |
| AWG cross-section | AWG 20 bis 6 | |
| Rated surge voltage | 6 kV | |
| Rated current | 57 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 77.5 mm | |
| Width | 10.2 mm | |
| Height | 73 mm | |
| Connection | Schraubanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
