2776032 | Phoenix Contact
Component terminal block, screw connection, 0.2-6.0 mm², 4 pole, 32 A, 6 kV, gray, 2776032
Unit Price (€ / pc.)
12.1023 € *
Available: 0 pcs.
Available in 10 days: 50 pcs.
Leadtime: 1 Week **

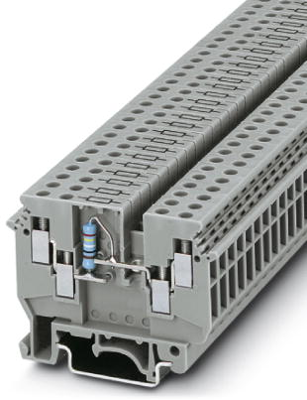

Component terminal block, 2776032, Phoenix Contact
1-level terminal block with double connection on both sides, with built-in resistor 5.1 kΩ, ±0.1%, 0.6 W, cross section: 0.2 - 2.5 mm², width: 6.2 mm, color: gray.
Features
- The four-conductor connection enables user-friendly wiring
- A voltage signal pick-off can be implemented in the measuring line using this terminal block, enabling the signal to be used as an analog signal for process computers
- The constant circuits common in process automation transmit the measured values as a load-independent current of 0 - 20 mA
- The lower level is assigned to the measuring line while the upper level is used for voltage pick-off via the 5.1 kOhm resistor
Technical specifications
| Connection | screw connection | |
| Number of terminals | 4 | |
| Version | component terminal block | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 630 V | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Colour | gray | |
| Height | 52 mm | |
| Length | 63.5 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 32 A | |
| Pin number | 4 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
