3000569 | Phoenix Contact

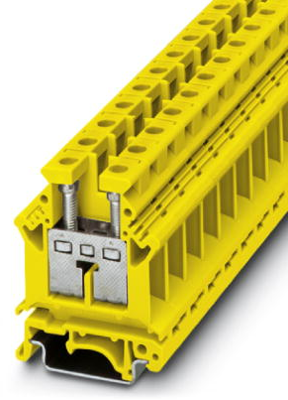

Through terminal block, screw connection, 2.5-25 mm², 2 pole, 76 A, 8 kV, yellow, 3000569
Unit Price (€ / pc.)
4.1531 € *
Available: 0 pcs.
Available in 10 days: 900 pcs.
Leadtime: 1 Week **
Feed-through terminal block, 3000569, Phoenix Contact
Feed-through terminal block, rated voltage: 800 V, nominal current: 76 A, connection method: Screw connection, Rated cross section: 16 mm², cross section: 2.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: yellow.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 14 bis 4 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 12.2 mm | |
| Farbe | gelb | |
| Höhe | 54 mm | |
| Länge | 42.5 mm | |
| Leiterquerschnitt | 2,5-25 mm² | |
| Nennstrom | 76 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
