3000571 | Phoenix Contact
Through terminal block, screw connection, 2.5-25 mm², 2 pole, 76 A, 8 kV, red, 3000571
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

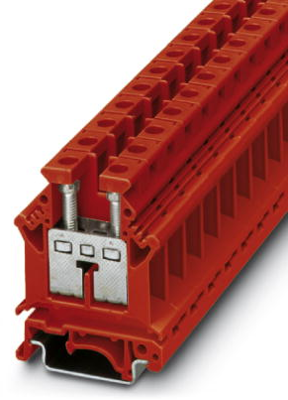

Feed-through terminal block, 3000571, Phoenix Contact
Feed-through terminal block, rated voltage: 800 V, nominal current: 76 A, connection method: Screw connection, Rated cross section: 16 mm², cross section: 2.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: red.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 14 to 4 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 12.2 mm | |
| Colour | red | |
| Height | 54 mm | |
| Length | 42.5 mm | |
| Cable cross-section | 2.5-25 mm² | |
| Rated current | 76 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
