3000692 | Phoenix Contact
COMBI jack, push-in connection, 0.5-10 mm², 1 pole, 41 A, 8 kV, green, 3000692
Unit Price (€ / pc.)
2.3681 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.37 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3681 €
10 pcs.
2.1777 €
50 pcs.
1.9754 €
100 pcs.
1.7850 €
*incl. VAT plus shipping costs
**Subject to prior sale

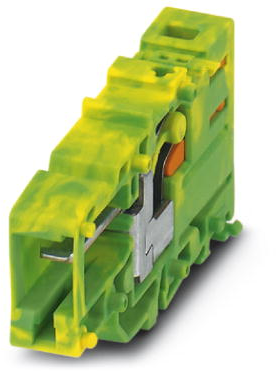

COMBI receptacle, 3000692, Phoenix Contact
COMBI receptacle, rated voltage: 1000 V, nominal current: 41 A, connection method: Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², color: green/yellow.
Features
- For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts
- The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves
- Tested for railway applications
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | COMBI-Kupplung | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 8.2 mm | |
| Farbe | grün | |
| Höhe | 24.7 mm | |
| Länge | 47 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 41 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
