3000694 | Phoenix Contact
COMBI jack, push-in connection, 0.5-10 mm², 3 pole, 41 A, 8 kV, gray, 3000694
Unit Price (€ / pc.)
6.7592 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
6.76 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7592 €
10 pcs.
6.2118 €
50 pcs.
5.6525 €
100 pcs.
5.0813 €
*incl. VAT plus shipping costs
**Subject to prior sale

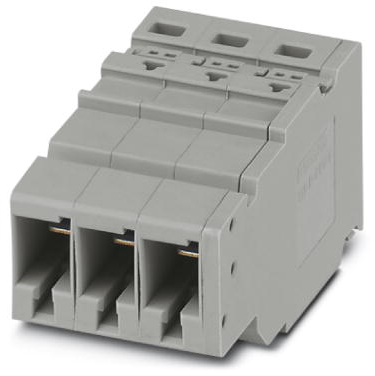

COMBI receptacle, 3000694, Phoenix Contact
COMBI receptacle, rated voltage: 1000 V, nominal current: 41 A, connection method: Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², color: gray.
Features
- For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts
- The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves
- Tested for railway applications
Technical specifications
| Version | COMBI-Kupplung | |
| Number of terminals | 2 | |
| Pin number | 3-polig | |
| Cable cross-section | 0,5-10 mm² | |
| AWG cross-section | AWG 20 bis 8 | |
| Rated surge voltage | 8 kV | |
| Rated current | 41 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 47 mm | |
| Width | 24.6 mm | |
| Height | 24.7 mm | |
| Connection | Push-in-Anschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
