3001381 | Phoenix Contact
Through terminal block, screw connection, 0.5-16 mm², 3 pole, 57 A, 8 kV, gray, 3001381
Unit Price (€ / pc.)
5.1646 € *
Available: 0 pcs.
Available in 10 days: 4,350 pcs.
Leadtime: 1 Week **

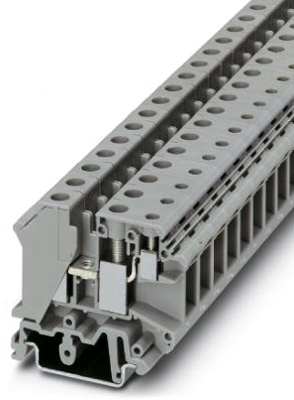

Feed-through terminal block, 3001381, Phoenix Contact
1-level terminal block with double connection on one side, cross section: 0.5 - 10 mm², AWG: 24 - 6, width: 10.2 mm, color: gray.
Features
- These twin modular terminal blocks are designed for the basic task of potential branching
- Universal foot for mounting on NS 35 or NS 32 DIN rails
- Two independent conductor connections can be used on the control cabinet side
- Easy connection of different types of conductors with different cross sections
- Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 10.2 mm | |
| Farbe | grau | |
| Höhe | 47 mm | |
| Länge | 53 mm | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Nennstrom | 57 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
