3002131 | Phoenix Contact
Through terminal block, screw/plug-in connection, 0.2-4.0 mm², 1 pole, 24 A, 4 kV, gray, 3002131
Unit Price (€ / pc.)
4.8195 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

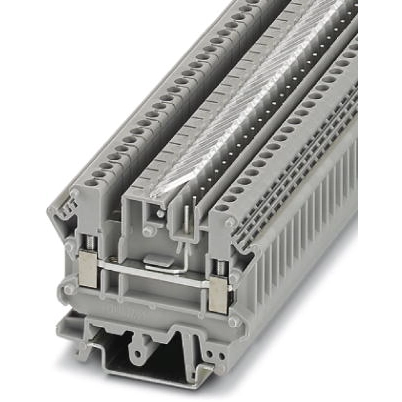

Feed-through terminal block, 3002131, Phoenix Contact
Feed-through terminal block, rated voltage: 250 V, nominal current: 24 A, connection method: Screw/plug-in connection, 1 level, cross section: 0.2 mm² - 4 mm², mounting type: NS 32, NS 35/15, NS 35/7,5, color: gray.
Technical specifications
| Connection | screw/plug-in connection | |
| Number of terminals | 3 | |
| Version | through terminal block | |
| AWG cross-section | AWG 24 to 12 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 5.08 mm | |
| Colour | gray | |
| Height | 49.5 mm | |
| Length | 60 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
