3002216 | Phoenix Contact

Component terminal block, spring balancer connection, 0.08-4.0 mm², 4 pole, 1.5 A, 8 kV, gray, 3002216

Order No.: 60P4655
EAN: 4055626210421
MPN:
3002216
ST 2,5-QUATTRO-DIO 1N5408K/L-R
Series: ST
Phoenix Contact
3002216 Phoenix Contact Series Terminals

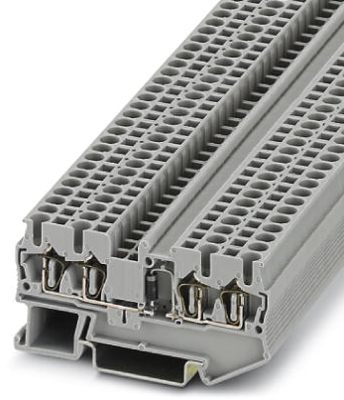

Image may differ
Unit Price (€ / pc.)
4.9742 € *
Available: 0 pcs.
Available in 10 days: 113 pcs.
Leadtime: 1 Week **
Total Price:
4.97 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9742 €

Component terminal block, 3002216, Phoenix Contact

Component terminal block, with integrated diode 1N 5408K, rated voltage: 800 V, nominal current: 1.5 A, 1 level, connection method: Spring-cage connection, Rated cross section: 1 mm², cross section: 0.08 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 4
Ausführung Bauelement-Reihenklemme
AWG-Leiterquerschnitt AWG 28 bis 12
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 5.2 mm
Farbe grau
Höhe 44 mm
Länge 72 mm
Leiterquerschnitt 0,08-4,0 mm²
Nennstrom 1.5 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
