3002615 | Phoenix Contact
Multi-level clamp, push-in connection, 0.2-6.0 mm², 30 A, 6 kV, gray, 3002615
Unit Price (€ / pc.)
4.165 € *
Available: 0 pcs.
Available in 10 days: 2,725 pcs.
Leadtime: 1 Week **

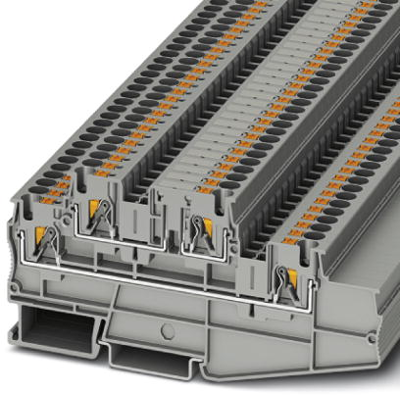

Multi level terminal, 3002615, Phoenix Contact
Multi-level terminal block, rated voltage: 500 V, nominal current: 30 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Easy and tool-free direct plug-in thanks to push-in multi-conductor connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Mehrstockklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 54.5 mm | |
| Länge | 118.5 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennstrom | 30 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
