3002792 | Phoenix Contact

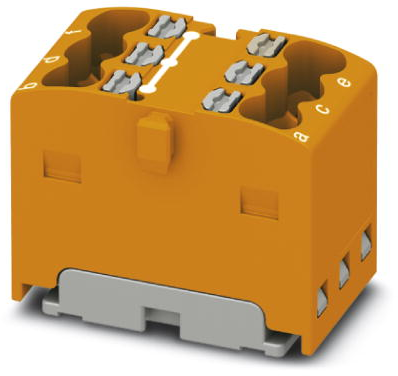

Distribution block, push-in connection, 0.14-2.5 mm², 6 pole, 17.5 A, 6 kV, orange, 3002792
Unit Price (€ / pc.)
3.8913 € *
Available: 0 pcs.
Available in 10 days: 640 pcs.
Leadtime: 1 Week **
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8913 €
10 pcs.
3.5819 €
50 pcs.
3.2606 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution block, 3002792, Phoenix Contact
Distribution block, the block can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, bridged internally, rated voltage: 450 V, nominal current: 17.5 A, connection method: Push-in connection, cross section: 0.14 mm² - 2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: orange.
Features
- Space-saving, thanks to the compact design
- Flexible use, thanks to direct mounting with flange covers from accessories
- Convenient test options, thanks to test openings at every terminal point
- Clear arrangement thanks to marking of all terminal points
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Verteilerblock | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 450 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 12.5 mm | |
| Farbe | orange | |
| Höhe | 17.7 mm | |
| Länge | 21.6 mm | |
| Leiterquerschnitt | 0,14-2,5 mm² | |
| Nennstrom | 17.5 A | |
| Polzahl | 6-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
