3003567 | Phoenix Contact

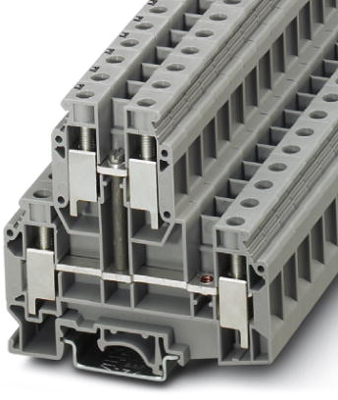

Double level terminal, screw connection, 0.5-16 mm², 4 pole, 57 A, 6 kV, gray, 3003567
Unit Price (€ / pc.)
21.301 € *
Available: 0 pcs.
Available in 10 days: 5,044 pcs.
Leadtime: 1 Week **
Double lever terminal block, 3003567, Phoenix Contact
Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 57 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², Rated cross section: 10 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Features
- Design width of just 10.2 mm
Technical specifications
| Connection | screw connection | |
| Number of terminals | 4 | |
| Version | double level terminal | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 10.2 mm | |
| Colour | gray | |
| Height | 73 mm | |
| Length | 77.5 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 57 A | |
| Pin number | 4 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
