3005235 | Phoenix Contact
Through terminal block, screw connection, 0.5-16 mm², 3 pole, 57 A, 8 kV, blue, 3005235
Unit Price (€ / pc.)
6.1285 € *
Available: 0 pcs.
Available in 10 days: 2,519 pcs.
Leadtime: 1 Week **

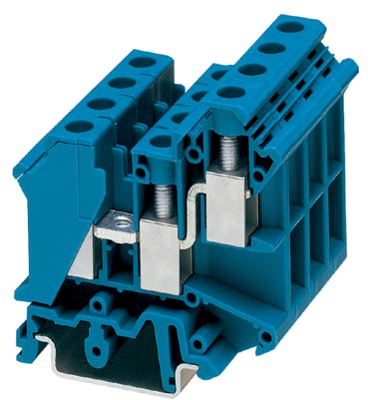

Feed-through terminal block, 3005235, Phoenix Contact
1-level terminal block with double connection on one side, cross section: 0.5 - 10 mm², AWG: 24 - 6, width: 10.2 mm, color: blue
Features
- These twin modular terminal blocks are designed for the basic task of potential branching
- Two independent conductor connections can be used on the control cabinet side
- Easy connection of different types of conductors with different cross sections
- Can be bridged in the terminal center, even with neighboring Feed-through terminal blocks aligned
Technical specifications
| Connection | screw connection | |
| Number of terminals | 3 | |
| Version | through terminal block | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 10.2 mm | |
| Colour | blue | |
| Height | 59 mm | |
| Length | 56.5 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 57 A | |
| Pin number | 3 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | GR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
