3009163 | Phoenix Contact

Protective conductor terminal, screw connection, 16-50 mm², 150 A, 8 kV, yellow/green, 3009163

Order No.: 60P5311
EAN: 4017918091699
MPN:
3009163
UKH 50-PE/N
Series: UKH

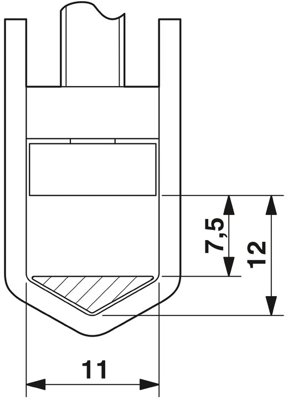

3009163 Phoenix Contact Series Terminals Image 1

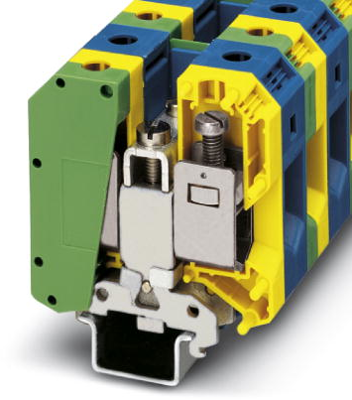

3009163 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
43.2208 € *
Available: 0 pcs.
Available in 10 days: 216 pcs.
Leadtime: 1 Week **
Total Price:
43.22 € *
Price list
Quantity
Price per unit*
1 pcs.
43.2208 €
2 pcs.
40.1863 €
5 pcs.
36.5687 €
10 pcs.
32.9154 €
*incl. VAT plus shipping costs
**Subject to prior sale

Installation ground terminal block, 3009163, Phoenix Contact

Installation ground terminal block, PE/N block, consisting of a green-yellow ground terminal and a blue terminal block with screw bridge, rated voltage: 1000 V, nominal current: 150 A, Screw connection, cross section: 16 mm²  - 50 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow.

Features

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
Anschluss Schraubanschluss
Ausführung Schutzleiterklemme
AWG-Leiterquerschnitt AWG 6 bis 1/0
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 40 mm
Farbe gelb/grün
Höhe 83.5 mm
Länge 70.5 mm
Leiterquerschnitt 16-50 mm²
Nennstrom 150 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
