3009176 | Phoenix Contact
Protective conductor terminal, screw connection, 25-95 mm², 232 A, 8 kV, yellow/green, 3009176
Unit Price (€ / pc.)
76.041 € *
Available: 0 pcs.
Available in 10 days: 115 pcs.
Leadtime: 2 Weeks **

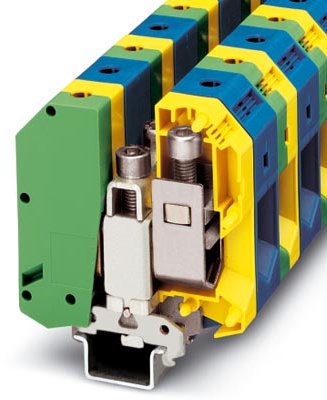

Installation ground terminal block, 3009176, Phoenix Contact
Installation ground terminal block, Screws with hexagonal socket, PE/N block, consisting of a green-yellow ground terminal and a blue terminal block with screw bridge, rated voltage: 1000 V, nominal current: 232 A, Screw connection, cross section: 25 mm² - 95 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow.
Features
- Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- Low contact resistance of the contact surface due to ribbing
- Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
| Connection | Schraubanschluss | |
| Version | Schutzleiterklemme | |
| AWG cross-section | AWG 3 bis 3/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 50 mm | |
| Colour | gelb/grün | |
| Height | 99 mm | |
| Length | 83 mm | |
| Cable cross-section | 25-95 mm² | |
| Rated current | 232 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
