3011038 | Phoenix Contact

Motor connection terminal, screw connection, 0.2-4.0 mm², 19 A, 6 kV, gray, 3011038

Order No.: 60P0252
EAN: 4017918091897
MPN:
3011038
DLKB 2,5-PE
Series: DLKB
3011038 Phoenix Contact Series Terminals

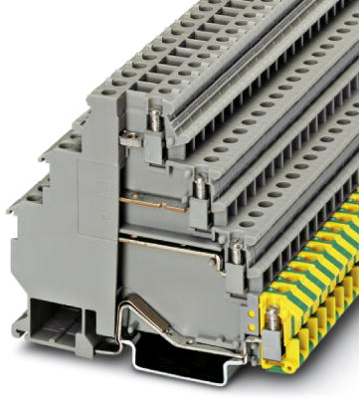

Image may differ
Unit Price (€ / pc.)
10.3054 € *
Available: 0 pcs.
Available in 10 days: 164 pcs.
Leadtime: 1 Week **
Total Price:
10.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.3054 €

Motor terminal block, 3011038, Phoenix Contact

Motor terminal block, four-level, bridgeable, with PE foot, cross section: 0.2 mm²  - 4 mm², AWG: 24 - 12, connection method: screw connection, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15.

Features

  • The DLK 2,5-PE and DLKB 2,5-PE three-conductor terminal blocks are particularly suitable for wiring three-phase loads due to their design featuring three feed-through levels plus PE connection
  • In order to reduce wiring effort, the DLKB 2,5-PE can also be bridged in the middle and lower levels using EB-DIK insertion bridges with up to 80 positions
Technical specifications
Anschluss Schraubanschluss
Ausführung Motoranschlussklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 70 mm
Länge 83.5 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 19 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
