3011999 | Phoenix Contact

Motor connection terminal, screw connection, 0.2-6.0 mm², 32 A, 6 kV, gray, 3011999

Order No.: 60P0250
EAN: 4017918172299
MPN:
3011999
DLK 4-PE
Series: DLK
Phoenix Contact
3011999 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
13.8397 € *
Available: 0 pcs.
Available in 10 days: 625 pcs.
Leadtime: 1 Week **
Total Price:
13.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
13.8397 €

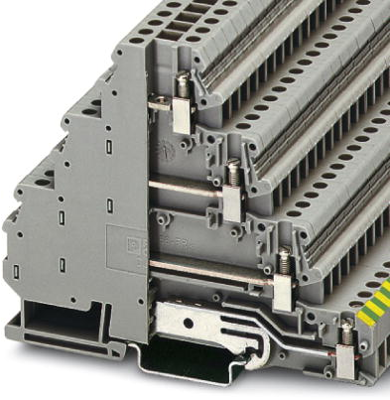

Motor terminal block, 3011999, Phoenix Contact

Motor terminal block, four-level, cross section:  0.2 mm²  - 6 mm², AWG: 24 - 10, connection method: screw connection, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15.

Technical specifications
Anschluss Schraubanschluss
Ausführung Motoranschlussklemme
AWG-Leiterquerschnitt AWG 24 bis 10
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 86.5 mm
Länge 103.5 mm
Leiterquerschnitt 0,2-6,0 mm²
Nennstrom 32 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
