3024740 | Phoenix Contact
Protective conductor terminal, screw connection, 0.5-16 mm², 2 pole, 76 A, 4 kV, yellow/green/blue, 3024740
Unit Price (€ / pc.)
17.3264 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.33 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3264 €
10 pcs.
15.9460 €
50 pcs.
14.5061 €
100 pcs.
13.0543 €
*incl. VAT plus shipping costs
**Subject to prior sale

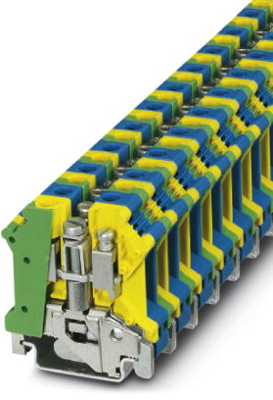

Installation ground terminal block, 3024740, Phoenix Contact
Installation ground terminal block, PE/N block, consisting of a green-yellow ground terminal and a blue terminal block with screw bridge, rated voltage: 250 V, nominal current: 76 A, connection method: Screw connection, cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow-blue.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | protective conductor terminal | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 20.4 mm | |
| Colour | yellow/green/blue | |
| Height | 47.3 mm | |
| Length | 42.5 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 76 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
