3029973 | Phoenix Contact
Through terminal block, spring balancer connection, 0.2-10 mm², 41 A, 6 kV, gray, 3029973
Unit Price (€ / pc.)
9.7461 € *
Available: 0 pcs.
Leadtime: On Request **

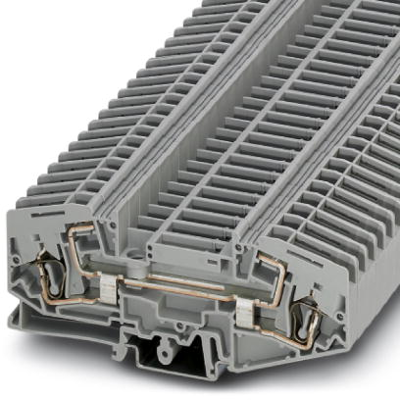

Feed-through terminal block, 3029973, Phoenix Contact
Feed-through terminal block, rated voltage: 400 V, nominal current: 41 A, connection method: Spring-cage connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Features
- Easy and clear operation
- Compact design
- Flexible and comprehensive accessories
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 8 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.2 mm | |
| Farbe | grau | |
| Höhe | 49 mm | |
| Länge | 113 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennstrom | 41 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
