3033210 | Phoenix Contact

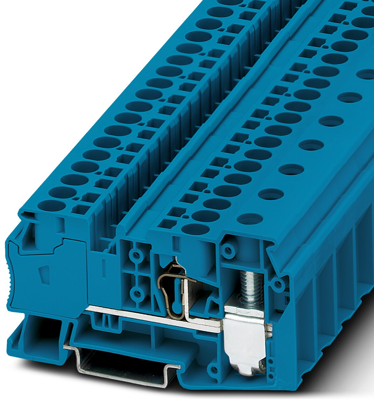

Potential collecting terminal, spring balancer connection, 0.2-10 mm², 5 pole, 41 A, 8 kV, blue, 3033210
Unit Price (€ / pc.)
17.136 € *
Available: 0 pcs.
Available in 10 days: 75 pcs.
Leadtime: 1 Week **
Potential collective terminal, 3033210, Phoenix Contact
Potential collective terminal, rated voltage: 1000 V, nominal current: 41 A, connection method: Spring-cage connection, Load contact, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², Screw connection, Line contact, Rated cross section: 35 mm², cross section: 1.5 mm² - 50 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- The system-internal distribution is via four spring-cage connections with a nominal cross section of 10 mm²
- Supplied using a 35 mm² screw connection
- Can be consistently bridged to standard terminal blocks in the ST spring-cage terminal block series
- The double bridge shaft supports further potential distributions
Technical specifications
| Ausführung | Potenzialsammelklemme | |
| Anzahl der Klemmstellen | 5 | |
| Polzahl | 5-polig | |
| Leiterquerschnitt | 0,2-10 mm² | |
| AWG-Leiterquerschnitt | AWG 24 bis 8 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 41 A | |
| Bemessungsspannung | 1000 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 86 mm | |
| Breite | 16.2 mm | |
| Höhe | 46.8 mm | |
| Anschluss | Federzuganschluss | |
| Farbe | blau |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
