3035072 | Phoenix Contact

Protective conductor double level terminal, spring balancer connection, 0.08-6.0 mm², 6 kV, yellow/green, 3035072

Order No.: 60P4999
EAN: 4046356053518
MPN:
3035072
STTBS 4-PE
Series: STTBS
3035072 Phoenix Contact Series Terminals
Image may differ

Nicht geeignet für Neudesigns, LTB: 30.06.2025

Unit Price (€ / pc.)
10.6148 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.6148 €

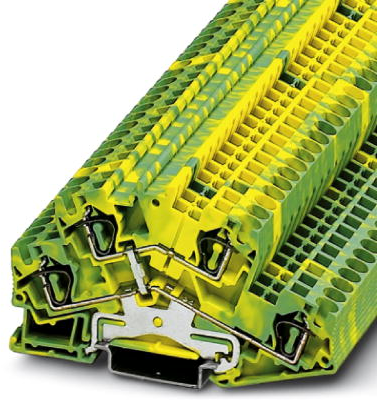

Protective conductor double level terminal block, 3035072, Phoenix Contact

Protective conductor double-level terminal block, number of connections: 4, connection method: Spring-cage connection, 1st and 2nd level, cross section: 0.08 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • Two large-surface labeling options
Technical specifications
Anschluss Federzuganschluss
Ausführung Schutzleiter-Doppelstockklemme
AWG-Leiterquerschnitt AWG 28 bis 10
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe gelb/grün
Höhe 55 mm
Länge 92.4 mm
Leiterquerschnitt 0,08-6,0 mm²
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
