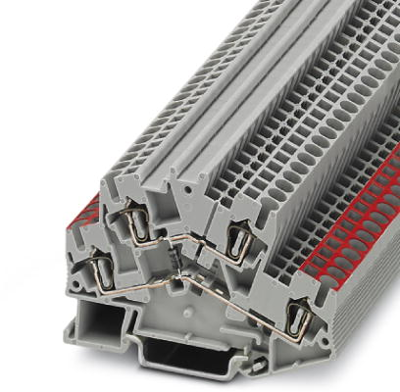

3035111 | Phoenix Contact

Component terminal block, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, gray, 3035111

Order No.: 60P4990
EAN: 4017918949884
MPN:
3035111
STTBS 2,5-DIO/U-O
Series: STTBS
3035111 Phoenix Contact Series Terminals
Image may differ

Nicht geeignet für Neudesigns, LTB: 30.06.2025

Unit Price (€ / pc.)
9.6271 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.63 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6271 €
10 pcs.
8.8655 €
50 pcs.
8.0682 €
100 pcs.
7.2590 €
*incl. VAT plus shipping costs
**Subject to prior sale

Component terminal block, 3035111, Phoenix Contact

Component terminal block, with integrated diode, rated voltage: 500 V, nominal current: 22 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 4
Ausführung Bauelement-Reihenklemme
AWG-Leiterquerschnitt AWG 28 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe grau
Höhe 55 mm
Länge 78 mm
Leiterquerschnitt 0,08-4,0 mm²
Nennstrom 22 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
