3035289 | Phoenix Contact

Double level terminal, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, blue, 3035289

Order No.: 60P4994
EAN: 4046356081306
MPN:
3035289
STTBS 2,5-PV BU
Series: STTBS
3035289 Phoenix Contact Series Terminals

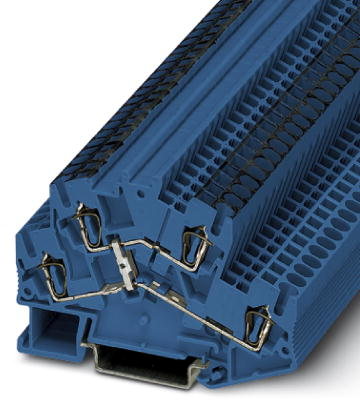

Image may differ

Nicht geeignet für Neudesigns - Last time buy Hersteller: 30.06.2025

Unit Price (€ / pc.)
6.0095 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.0095 €

Double-level terminal block, 3035289, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Two large-surface labeling options
Technical specifications
Connection Federzuganschluss
Version Doppelstockklemme
AWG cross-section AWG 28 bis 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour blau
Height 55 mm
Length 78 mm
Cable cross-section 0,08-4,0 mm²
Rated current 22 A
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
