3035686 | Phoenix Contact

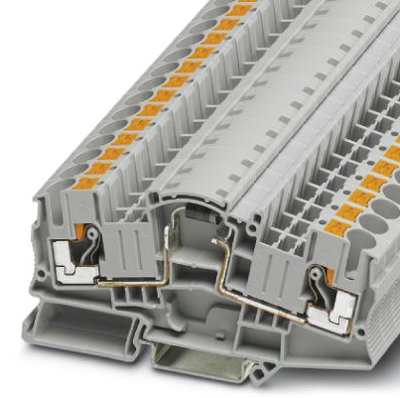

Component terminal block, push-in connection, 0.5-10 mm², 2 pole, 1.3 A, 8 kV, gray, 3035686
Unit Price (€ / pc.)
6.9853 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Component terminal block, 3035686, Phoenix Contact
Component terminal block, If several diode terminal blocks need adding to the DIN rail, a spacer plate must be placed between them., with integrated BY255 diode, rated voltage: 1000 V, nominal current: 1.3 A, connection method: Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², color: gray.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | component terminal block | |
| AWG cross-section | AWG 24 to 8 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 8.2 mm | |
| Colour | gray | |
| Height | 60 mm | |
| Length | 100.8 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Rated current | 1.3 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
